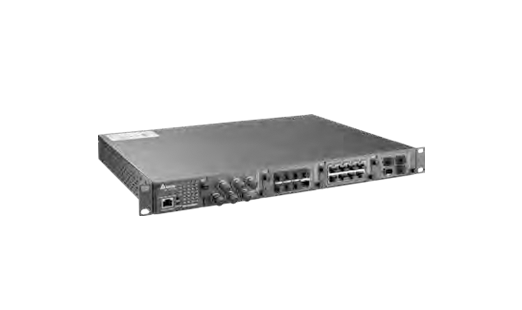

| 28-Port full GbE (10 GbE optional), modular design for flexible configuration |
| Layer 3 routing functions (RIP & VRRP) allows multiple subnets in a large network to exchange data and information across a network address |
| Complete L2 network management functions : Q-in-Q VLAN, QoS, LACP, IGMP, SNMP v1 / v2c / v3 |
| IPv6 address suitable for large network and neighboring node discovery |
| EtherNet/IP and Modbus TCP protocols that facilitate the remote management by SCADA and other industrial devices |
| Adopts high-end proprietary redundancy technologies ONE RING & ONE CHAIN for quick self-recovery within 30 ms from network disconnection |
| Enhanced network security with IEEE 802.1X, TACACS+, SSH, HTTPS and SNMP v3 |
| IEEE 1588v2 PTP (Precision Time Protocol) for precise time synchronization and calibration for network equipment |
| Loopback-detection to avoid broadcast storms by automatically shutting down the ports over a switching loop |
| Cable diagnostic to auto-detect the twisted-pair cabling quality and report cabling issues regularly |
| Auto alarm notifications by emails, relay, Syslog & SNMP trap |
| Compatible with various industrial protocols, including EtherNet/IP, PROFINET, CC-LINK IE and DNP 3.0 |
| 100 ~ 240 VAC and 125 ~ 370 VDC wide-range redundant power input |
| IP30 metal case, -40ºC ~ 85ºC operating temperature |
| Electrical substation: IEC 61850-3, IEEE 1613 |
| Rail traffic: EN 50121-4 |
| Certification: UL 61010, IEC 60950-1, CE, FCC, CCC and RCM |

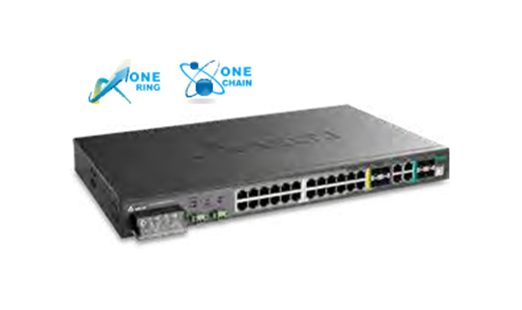

| 24-Port FE + 4-Port GbE Combo SFP, designed for backbone network transmission at control centers |
| Complete L2 network management functions: Q-in-Q VLAN, QoS, LACP, IGMP & SNMP v1 / v2c / v3 |
| IPv6 address for large network and neighboring node discovery |
| Modbus TCP and EtherNet/IP protocols that facilitate remote management by SCADA and other industrial devices |
| Adopts high-end proprietary redundancy technologies ONE RING & ONE CHAIN for quick self-recovery within 20 ms from network disconnection |
| Enhanced network security with IEEE 802.1X, TACACS+, SSH, HTTPS and SNMP v3 |
| Loopback-detection to avoid broadcast storms by automatically shutting down the ports over a switching loop |
| Cable diagnostic to automatically detect twisted-pair cable quality and periodically report issues |
| Auto alarm notifications by emails, DI, relay, syslog & SNMP trap |
| Compatible with various industrial protocols, including EtherNet/IP, PROFINET, CC-LINK IE and DNP 3.0 |
| 85 ~ 264 VAC and 88 ~ 370 VDC wide-range redundant power input |
| IP40 metal case, -40ºC ~ 70ºC operating temperature |
| Certification: UL 60950-1, IEC 60950-1, CCC, CE, FCC and RCM |
| 12-Port GbE + 4-Port GbE SFP, designed for backbone networks in IIoT application. Full Gigabit Ethernet configuration |
| Complete L2 network management functions: Q-in-Q VLAN, QoS, LACP, IGMP & SNMP v1 / v2c / v3 |
| IPv6 address for large network and neighboring node discovery |
| Modbus TCP and EtherNet/IP protocols that facilitate remote management by SCADA and other industrial devices |
| Delta network redundancy technology continues to evolve and optimize all the time; adopts high-end proprietary redundancy technologies ONE RING & ONE CHAIN for quick self-recovery within 10 ms from network disconnection |
| Enhanced network security with IEEE 802.1X,
TACACS+, SSH, HTTPS and SNMP |
| Loopback-detection to avoid broadcast storms by automatically shutting down the ports over a switching loop |
| DDM diagnosis function by SFP fiber module |
| Auto alarm notifications by emails, DI, relay, syslog & SNMP trap |
| Compatible with various industrial protocols, including EtherNet/IP, PROFINET, CC-LINK IE and DNP 3.0 |
| IP40 metal case, -40ºC ~ 75ºC wide operating temperature |
| Certification: UL 61010, IEC 62368-1, CE, FCC and RCM |

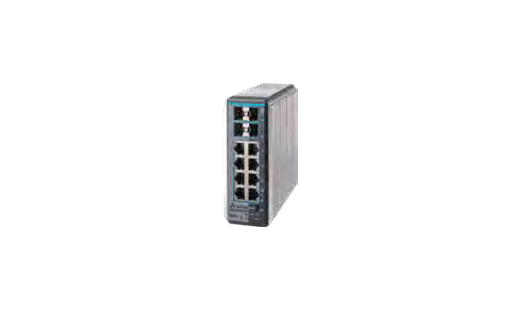

| 8-Port GbE + 4-Port GbE SFP, designed for backbone networks in IIoT applications; full Gigabit Ethernet configuration |
| Complete L2 network management functions: Q-in-Q VLAN, QoS, LACP, IGMP & SNMP v1 / v2c / v3 |
| IPv6 address for large network and neighboring node discovery |
| Modbus TCP and EtherNet/IP protocols that facilitate remote management by SCADA and other industrial devices |
| Delta network redundancy technology continues to evolve and optimize all the time; adopts high-end proprietary redundancy technologies ONE RING & ONE CHAIN for quick self-recovery within 10 ms from network disconnection |
| Enhanced network security with IEEE 802.1X,
TACACS+, SSH, HTTPS and SNMP v3 |
| Loopback-detection to avoid broadcast storms by automatically shutting down the ports over a switching loop |
| DDM diagnosis function by SFP fiber module |
| Auto alarm notifications by emails, DI, relay, syslog & SNMP trap |
| Compatible with various industrial protocols, including EtherNet/IP, PROFINET, CC-LINK IE and DNP 3.0 |
| IP40 metal case, -40ºC ~ 75ºC wide operating temperature |
| Certification: UL 61010, IEC 62368-1, CE, FCC and RCM |

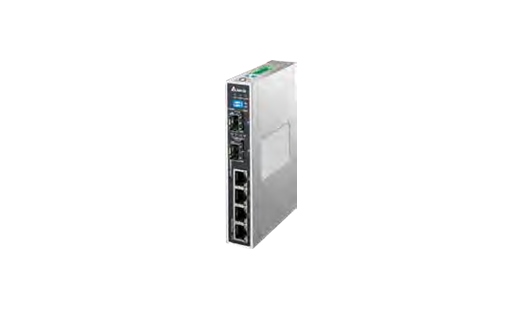

| 4-Port GbE + 2-Port GbE SFP, designed for backbone networks in IIoT applications; full Gigabit Ethernet configuration |
| Complete L2 network management functions: Q-in-Q VLAN, QoS, LACP, IGMP & SNMP v1 / v2c / v3 |
| IPv6 address for large network and neighboring node discovery |
| Modbus TCP and EtherNet/IP protocols that facilitate remote management by SCADA and other industrial devices |
| Delta network redundancy technology continues to evolve and optimize all the time; adopts high-end proprietary redundancy technologies ONE RING & ONE CHAIN for quick self-recovery within 10 ms from network disconnection |
| Enhanced network security with IEEE 802.1X,
TACACS+, SSH, HTTPS and SNMP v3 |
| Loopback-detection to avoid broadcast storms by automatically shutting down the ports over a switching loop |
| DDM diagnosis function by SFP fiber module |
| Auto alarm notifications by emails, DI, relay, syslog & SNMP trap |
| Compatible with various industrial protocols, including EtherNet/IP, PROFINET, CC-LINK IE and DNP 3.0 |
| IP40 metal case, -40ºC ~ 75ºC wide operating temperature |
| Certification: UL 61010, IEC 62368-1, CE, FCC and RCM |
| 7-Port FE + 3-Port GbE Combo SFP, designed for backbone networks |
| Complete L2 network management functions: VLAN, QoS, LACP, IGMP & SNMP v1 / v2c / v3 |
| IPv6 address for large network and neighboring node discovery |
| Modbus TCP and EtherNet/IP protocols that facilitate remote management by SCADA and other industrial devices |
| Adopts high-end proprietary redundancy technologies ONE RING & ONE CHAIN for quick self-recovery within 20 ms from network disconnection |
| Loopback-detection to avoid broadcast storms by automatically shutting down the ports over a switching loop |
| DDM diagnosis function by SFP fiber module |
| Auto alarm notifications by emails, DI, relay, syslog & SNMP trap |
| Compatible with various industrial protocols, including EtherNet/IP, PROFINET, CC-LINK IE and DNP 3.0 |
| IP40 metal case, -40ºC ~ 75ºC operating temperature |
| Certification: UL 508, IEC 61131-2, CE, FCC and RCM |

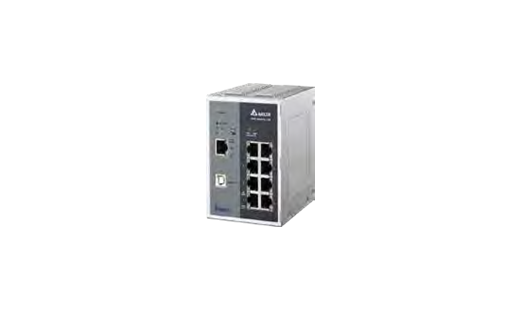

| 8-Port FE + 1-Port GbE Gigabit uplink port elevating transmission bandwidth |
| Complete L2 network management functions: VLAN, QoS, LACP, IGMP & SNMP v1 / v2c / v3 |
| IPv6 address for large network and neighboring node discovery |
| Modbus TCP and EtherNet/IP protocols that facilitate remote management by SCADA and other industrial devices |
| Adopts high-end proprietary redundancy technologies ONE RING & ONE CHAIN for quick self-recovery within 20 ms from network disconnection |
| Loopback-detection to avoid broadcast storms by automatically shutting down the ports over a switching loop |
| Auto alarm notifications by emails, DI, relay, syslog & SNMP trap |
| IP40 metal case, -40ºC ~ 75ºC operating temperature |
| Certification: UL 508, IEC 61131-2, CE, FCC and RCM |
| 6-Port FE + 2-Port GbE Combo SFP, designed for backbone network |
| Complete L2 network management functions: VLAN, QoS, LACP, IGMP & SNMP v1 / v2c / v3 |
| IPv6 address for large network and neighboring node discovery |
| Modbus TCP and EtherNet/IP protocols that facilitate remote management by SCADA and other industrial devices |
| Adopts high-end proprietary redundancy technologies ONE RING & ONE CHAIN for quick self-recovery within 20 ms from network disconnection |
| Loopback-detection to avoid broadcast storms by automatically shutting down the ports over a switching loop |
| DDM diagnosis function by SFP fiber module |
| Auto alarm notifications by emails, DI, relay, syslog & SNMP trap |
| IP40 metal case, -40ºC ~ 75ºC operating temperature |
| Certification: UL 508, IEC 61131-2, CE, FCC and RCM |

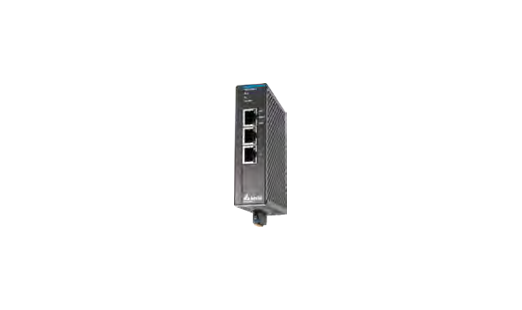

| 3-Port 10/100Base-T(X) Ethernet switch for EtherNet/IP DLR specifically |
| EtherNet/IP protocol |
| DLR (device-level ring) technology, self-healing recovery time < 3 ms (less than 50 nodes) |
| Design with DI and DO to automate alarms |
| IP40 metal case, -20ºC ~ 70ºC operating temperature |
| Certification: UL 61010, IEC 62368-1, CE, FCC and RCM |

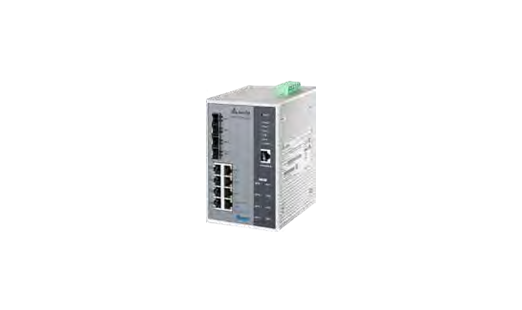

| 8-Port GbE + 4-Port 100/1000Base-SFP, full Gigabit |
| 8 10/100/1000Base-T PoE (PSE) ports, each provides 30 W power supply to meet IEEE 802.3at and IEEE 802.3af standards |
| Complete L2 network management functions: VLAN, QoS, LACP, IGMP & SNMP v1/v2c/v3 |
| IPv6 address for large network and neighboring node discovery |
| Advanced PoE management and intelligent powered device (PD) class detection |
| IEC 62439-2 MRP media redundancy protocol; IEEE 1588v2 PTP precision time protocol |
| DDM diagnosis function by SFP fiber module |
| Auto alarm notifications by emails, relay, syslog & SNMP trap |
| IP30 metal case, -40ºC ~ 70ºC operating temperature |
| Certification: CE, FCC and RCM |

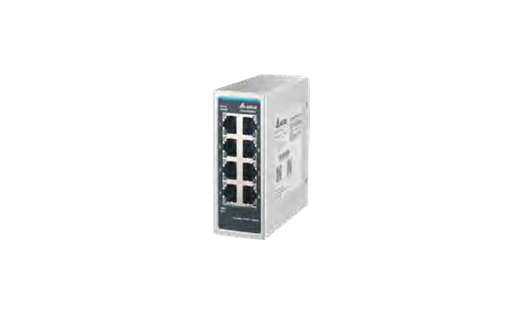

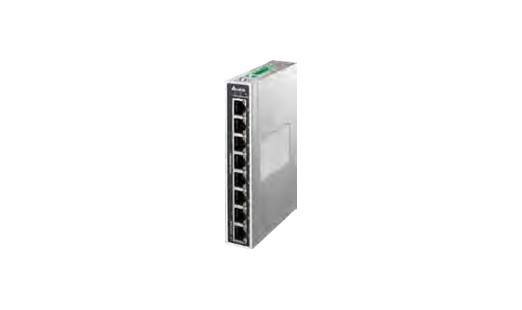

| 8-Port GbE |
| Transparent transmission of VLAN tagged packets |
| Auto alarm notifications by relay output for power failure |
| 12 ~ 48 VDC redundant terminal block power input with 10 ~ 24 VAC |
| IP30 metal case, -40ºC ~ 75ºC operating temperature |
| Certification : UL 61010, EN 62368-1, CE, FCC and RCM |

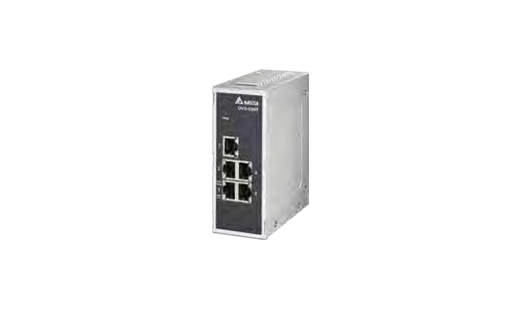

| 5-Port GbE |
| IEEE 802.1p based QoS for packet forwarding precedence |
| Built-in broadcast storm protection |
| Transparent transmission of VLAN tagged packets |
| Jumbo packet transmission: up to 9,216 Bytes |
| EEE Green Ethernet for power savings |
| IP40 metal case, -10ºC ~ 60ºC operating temperature |
| Certification: UL 508, IEC 61131-2, CE, FCC and RCM |
| 5-Port GbE |
| IEEE 802.1p based QoS for packet forwarding precedence |
| Built-in broadcast storm protection |
| Transparent transmission of VLAN tagged packets |
| Jumbo packet transmission: up to 9,216 Bytes |
| EEE Green Ethernet for power savings |
| IP40 metal case, -10ºC ~ 60ºC operating temperature |
| Certification: UL 508, IEC 61131-2, CE, FCC and RCM |
| 5-Port GbE |
| Jumbo frame size up to 10k Bytes |
| With a terminal block for 12 ~ 48 VDC redundant power input |
| IP40 PC case, -20ºC ~70ºC operating temperature |
| Certification: UL 61010, IEC 62368-1, CE, FCC and RCM |
| 5-Port GbE |
| Jumbo frame size up to 10k Bytes |
| With a terminal block for 12 ~ 48 VDC redundant power input |
| IP40 PC case, -20ºC ~70ºC operating temperature |
| Certification: UL 61010, IEC 62368-1, CE, FCC and RCM |

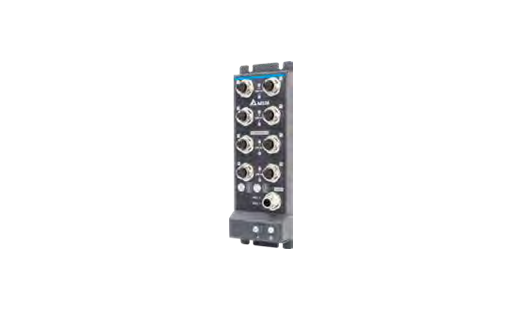

| 8-Port 10/100Base-T(X) M12, ensures robust and tight connection |
| Strong 5g resistance to extreme vibration environments |
| IP67-rated waterproof and dustproof metal housing to prevent penetrating water and micro dust ingress |
| Transparent transmission of VLAN tagged packets |
| 12 ~ 48 VDC redundant power input |
| 40ºC ~75ºC wide operating temperature |
| Certification: UL 61010, EN 62368-1, CE, FCC and RCM |
| 8-Port GbE, full Gigabit |
| 8 10/100/1000Base-T PoE (PSE) ports, each provides 30 W power supply to meet IEEE 802.3at and IEEE 802.3af standards |
| Jumbo packet transmission: up to 9,216 Bytes |
| Auto alarm notification by relay output for power failure |
| IP30 metal case, -40 ºC ~ 70 ºC operating temperature |
| Certification: CE, FCC and RCM |
| 4-Port GbE + 2-Port 100/1000Base-SFP, full Gigabit |
| 4 10/100/1000Base-T PoE (PSE) ports, each provides 30 W power supply to meet IEEE 802.3at and IEEE 802.3af standards |
| Jumbo packet transmission: up to 9,216 Bytes |
| Auto warning by relay output for power failure |
| IP30 metal case, -40ºC ~ 70ºC operating temperature |
| Certification: CE, FCC and RCM |

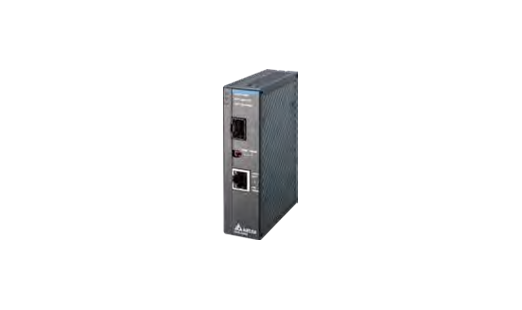

| 1-Port 100/1000Base-T to 100/1000Base-SFP |
| Jumbo frame size up to 10k Bytes |
| Supports Link Fault Pass-Through (LFP) |
| With a terminal block for 12 ~ 48 VDC redundant power input |
| IP40 PC case, -20ºC ~ 70ºC operating temperature |
| Certification: UL 61010, IEC 62368-1, CE, FCC and RCM |

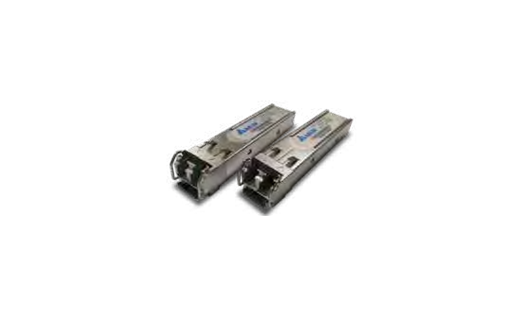

| 1-Port GbE, compliant with IEEE 802.3z |
| Full duplex operation |
| DDM diagnosis function to monitor transmission quality |
| Hot-plugging duplex LC connectors for maximum flexibility |
| Metal case, -40ºC ~ 85ºC operating temperature |
| 1-Port FE, compliant with IEEE 802.3u |
| Full duplex operation |
| DDM diagnosis function to monitor transmission quality |
| Hot-plugging duplex LC connectors for maximum flexibility |
| Metal case, -40ºC ~ 85ºC operating temperature |
| 1-Port GbE for PoE+ data / power input and 1-Port GbE for data output |
| All ports compliant with IEEE 802.3at and IEEE 802.3af standards, each provides 30 W power supply |
| Intelligent PoE input overvoltage protection |
| Power output up to 27 W |
| IP30 metal case, -20ºC ~ 70ºC operating temperature |
| Certification: CE, FCC and RCM |
| 2-Port GbE for PoE+ data / power output and 2-Port GbE for data input |
| All ports compliant with IEEE 802.3at and IEEE 802.3af standards, each provides 30 W power supply |
| Intelligent PoE output overvoltage protection |
| Built-in 12 VDC power booster for flexible PoE deployment |
| IP30 metal case, -20ºC ~ 70ºC operating temperature |
| Certification: CE, FCC and RCM |
| Complete transmission interface: 2-Port GbE + 2-Port RS-232 / 422 / 485 |

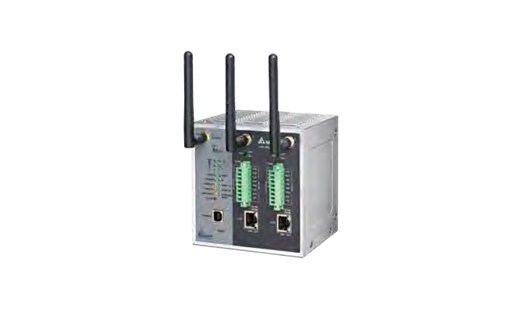

| Compliant with IEEE 802.11n wireless technology for up to 450 Mbps data transmission rate |
| IEEE 802.11r fast roaming with seamless switch (< 50 ms) among APs |
| Multiple wireless modes: AP, Client CPE, WDS P-T-P, WDS P-T-MP and repeater |
| Supports serial device servers and Modbus gateways |
| Wireless QoS (IEEE 802.11e, WMM) for video packet transmission precedence |
| Enhanced wireless security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) and 802.1X Authentication |
| Modbus TCP protocol that facilitates the remote management by SCADA and other industrial devices |
| Auto alarm notification by emails, DI, relay, Syslog and SNMP trap |
| IP40 metal case, -40ºC ~ 75ºC operating temperature |
| Certification: UL 508, IEC 61131-2, CE, FCC, RCM, BSMI, SRRC and NCC |
| Complete transmission interface: 1-Port GbE + 1-Port RS-232 + 1-Port RS-485 |
| Compliant with IEEE 802.11ac wireless technology for up to 866 Mbps data transmission rate |
| Proprietary ONE ROAMING high-end fast roaming technology with seamless switch (< 150 ms) among APs |
| Multiple wireless modes: AP, Client, repeater |
| Supports serial device servers and Modbus gateways |
| Wireless QoS (IEEE 802.11e, WMM) for video packet transmission precedence |
| Enhanced wireless security: WPA-PSK / WPA2-PSK (TKIP/AES) |
| Modbus TCP protocol that facilitates remote management by SCADA and other industrial devices |
| Auto alarm notification by emails, DI and relay |
| IP40 metal case, -10ºC ~ 60ºC operating temperature |
| Certification: UL 61010, IEC 62368-1, CE, FCC, RCM, SRRC and NCC |

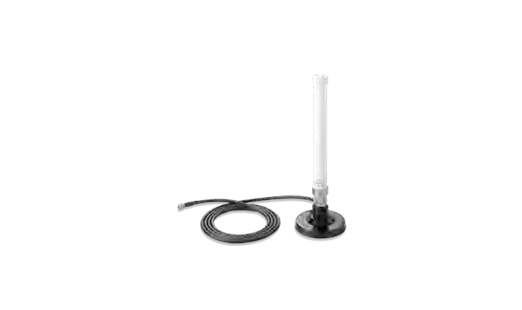

| Supports IEEE 802.11 b/g/n or IEEE 802.11 a/b/g/n |
| 2.4 & 5 GHz dual-band omni-directional 5.5 & 8dBi, or 2.4 GHz omni-directional 7dBi |
| Powerful magnetic base with 3-meter extension cord and RP-SMA (male) connector |
| IP65 waterproof and UV resistant design, suitable for applications under all kinds of weather conditions |
| 30ºC ~ 60ºC operating temperature |

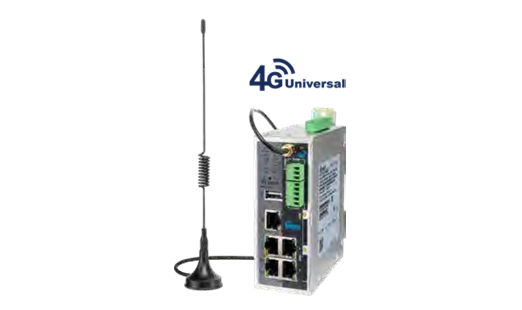

| 4-Port FE LAN + 1-Port FE WAN + 1-Port RS-232 + 1-Port RS-485 |
| Universal 4G LTE-FDD and LTE-TDD frequency bands, compatible with WCDMA/GSM/GPRS/EDGE 3G/2G networks |
| Supports DIACloud Cloud Management Platform, no ISP public IP address required |
| Modbus TCP, Modbus ASCII/RTU, Mitsubishi MC and Siemens TCP protocols |
| Dual SIM dual standby technology, seamless switch among ISP systems for continuous network connection |
| Built-in DI/DO for alarm settings and triggering |
| Firmware upgrade and automatic configuration via USB flash drives; allows remote access to the USB flash drives via FTP |
| USB port could be acceptable 3rd party Wi-Fi USB adapter to add WLAN interface as Wi-Fi client(only Realtek RTL8192EU driver supported ) |
| Internet connection via cellular network or broadband interfaces; allows self-defined internet connectivity priority |
| Firewalls: SPI, DoS attacks, IP/MAC filter |
| IP30 metal case, -20ºC ~ 70ºC operating temperature |
| Certification: NCC, CE, FCC and UL |

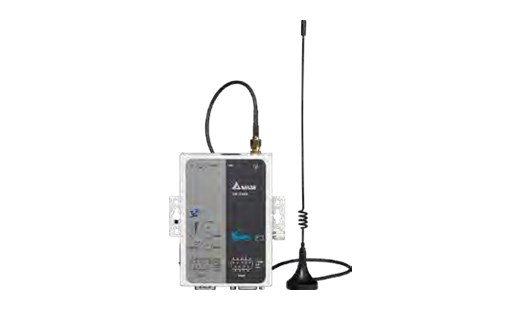

| 1-Port FE + 1-Port RS-232 + 1-Port RS-485 |
| UMTS / HSPA+: 800 / 850, 900, AWS1700, 1900, 2100 MHz |
| GSM / GPRS / EDGE: 850, 900, 1800, 1900 MHz |
| Supports DIACloud Cloud Management Platform, no ISP public IP address required |
| Modbus TCP and Modbus ASCII/RTU protocols |
| Firewalls: Stateful Packet Inspection (SPI), Denial of Service (DoS) attacks, NAT, port triggering, port mapping, IP address filtering, MAC address filtering, URL filtering |
| IP30 metal case, -20ºC ~ 70ºC operating temperature |
| Certification: CE, FCC and UL |

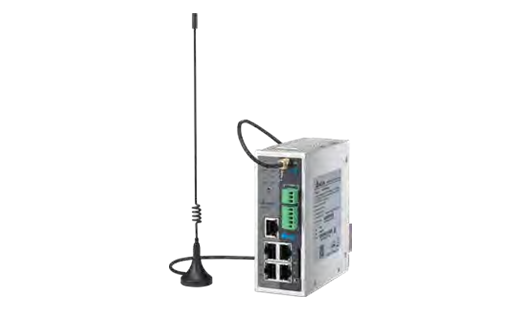

| 4-Port FE LAN + 1-Port FE WAN + 1-Port RS-232 + 1-Port RS-485 |
| Supports DIACloud Cloud Management Platform, no ISP public IP address required |
| Modbus TCP and Modbus ASCII/RTU protocols |
| Firewalls: Stateful Packet Inspection (SPI), Denial of Service (DoS) attacks, NAT, port triggering, port mapping, IP address filtering, MAC address filtering, URL filtering |
| IP30 metal case, -20ºC ~ 70ºC operating temperature |
| Certification: CE, FCC and UL |
| 4-Port FE LAN + 1-Port FE WAN + 1-Port RS-232 + 1-Port RS-485 |
| UMTS/HSPA+: 800 / 850, 900, AWS1700, 1900, 2100 MHz |
| GSM/GPRS/EDGE: 850, 900, 1800, 1900 MHz |
| Supports DIACloud Cloud Management Platform, no ISP public IP address required |
| Modbus TCP, Modbus ASCII/RTU protocols |
| Dual SIM redundancy design: seamless switch among ISP systems for continuous network connection |
| IP30 metal case, -20ºC ~ 70ºC operating temperature |
| Certification: CE, FCC and UL |
| 4-Port FE LAN + 1-Port FE WAN + 1-Port RS-232 + 1-Port RS-485 |
| UMTS/HSPA+: 800 / 850, 900, AWS1700, 1900, 2100 MHz |
| Supports GSM/GPRS/EDGE: 850, 900, 1800, 1900 MHz |
| IPSec, OpenVPN, PPTP, L2TP and GRE VPN protocols; IPSec with CA certificate supports L2TP over IPSec |
| Dual SIM redundancy design: seamless switch among ISP systems for continuous network connection |
| Built-in RTC |
| Flexible connection method over WAN port, e.g. static IP, DHCP client and more |
| Firewalls: Stateful Packet Inspection (SPI), Denial of Service (DoS) attacks, NAT, port triggering, port mapping, IP address filtering, MAC address filtering, URL filtering |
| IP30 metal case, -20ºC ~ 70ºC operating temperature |
| Certification: CE, FCC and UL |
